IFPD Technical Specification (RK3576 Android 14 8+128G IR touch)
| IFPD Technical Specification (RK3576 Android 14 8+128G IR touch) | ||||||
| Type | IM55F-55" LCD Interactive Screen | IM65F-65" LCD Interactive Screen | IM75F-75" LCD Interactive Screen | IM86F-86" LCD Interactive Screen | IM98F-98" LCD Interactive Screen | |

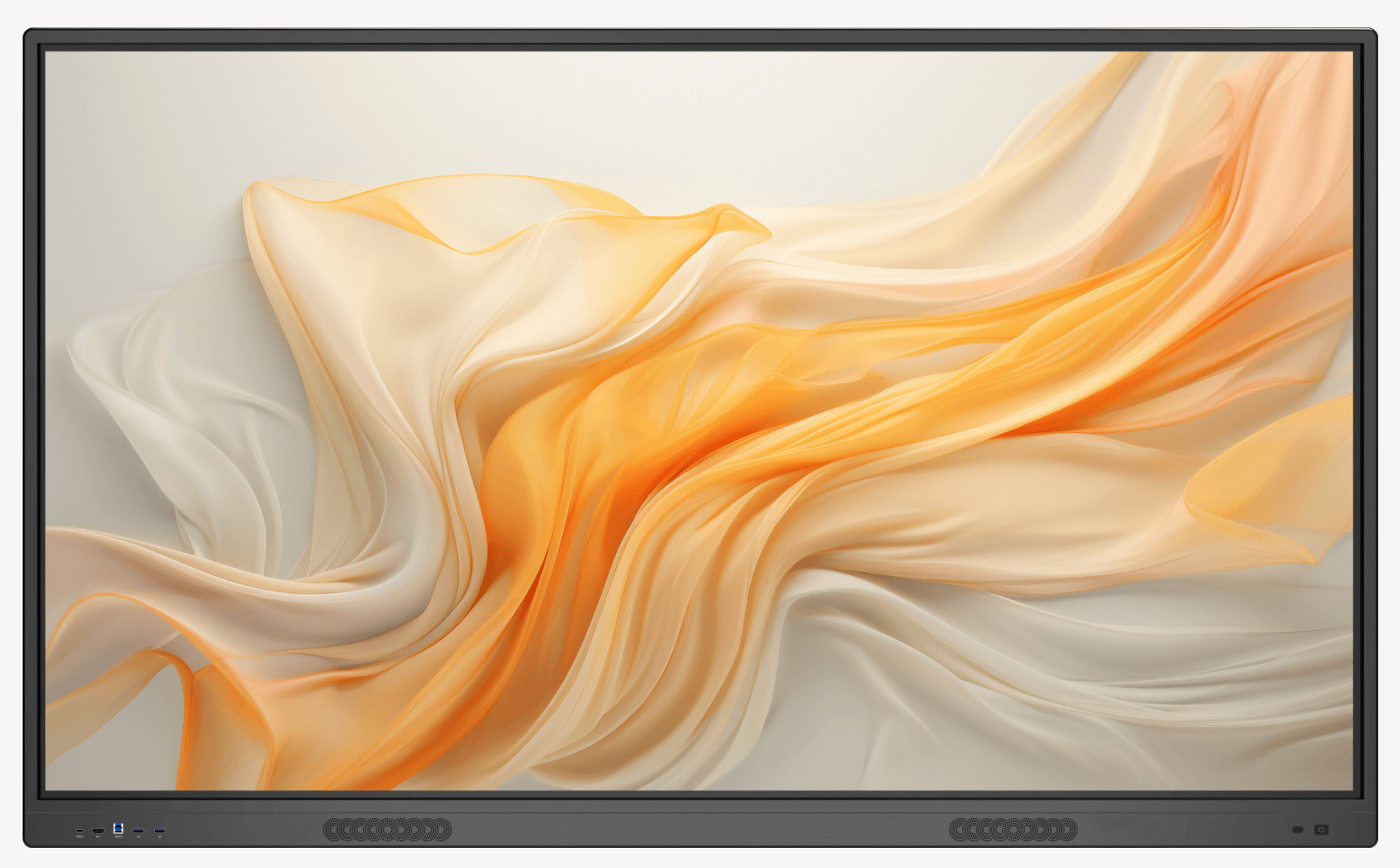

| Picture | ||||||
| Panel features | Panel Brand | CSOT/BOE | CSOT/BOE | CSOT/BOE | CSOT/BOE | CSOT/BOE |
| Backlight type | OD18 | OD18 | OD18 | OD18 | DLED | |
| Bonding | Zero bonding | Zero bonding | Zero bonding | Zero bonding | Zero bonding | |
| Resolution | 3840(H) ×2160 (V) | 3840(H) ×2160 (V) | 3840(H) ×2160 (V) | 3840(H) ×2160 (V) | 3840(H) ×2160 (V) | |
| Display Color | 1.07Billon colors | 1.07Billon colors | 1.07Billon colors | 1.07Billon colors | 1.07Billon colors | |
| Pixel Pitch | 0.315mm x 0.315mm | 0.372mm x 0.372mm | 0.430mm*0.430mm | 0.4935 mm x 0.4935 mm | 0.5622 mm x 0.5622 mm | |
| Brightness | Typical 450 cd/m² | Typical 450 cd/m² | Typical 450 cd/m² | Typical 450 cd/m² | Typical 450 cd/m² | |
| View Angle | R/L 178 (Min.), U/D 178 (Min.) | R/L 178 (Min.), U/D 178 (Min.) | R/L 178 (Min.), U/D 178 (Min.) | R/L 178 (Min.), U/D 178 (Min.) | R/L 178 (Min.), U/D 178 (Min.) | |
| Video feature | Video process and transform | 3D digital comb filter and 3D noise reduction,dual 3D dynamic video progressive scan etc | ||||
| Sound/speaker feature | Speaker Type | 2pcs Built-in,Left/Right | ||||
| Speaker Output | 20W × 2 | 20W × 2 | 20W × 2 | 20W × 2 | 20W × 2 | |
| Rear interfaces | VGA Input | 1 | 1 | 1 | 1 | 1 |
| VGA Audio Input | 1 | 1 | 1 | 1 | 1 | |
| Android USB3.0 | 1 | 1 | 1 | 1 | 1 | |
| Public USB3.0 | 1 | 1 | 1 | 1 | 1 | |
| Android USB2.0 | 1 | 1 | 1 | 1 | 1 | |
| Public USB2.0 | 1 | 1 | 1 | 1 | 1 | |
| Type C USB2.0 | / | / | / | / | / | |
| Micro USB | / | / | / | / | / | |
| Touch USB 2.0 | 1 | 1 | 1 | 1 | 1 | |
| HDMI 2.0 Input | 2 | 2 | 2 | 2 | 2 | |
| HDMI output | 1 | 1 | 1 | 1 | 1 | |
| AV Input | / | / | / | / | / | |
| AV output | / | / | / | / | / | |
| YPbPr in | / | / | / | / | / | |
| DP 1.2 Input | 1 | 1 | 1 | 1 | 1 | |
| type-C full function with 15W DP | 1 | 1 | 1 | 1 | 1 | |
| RS232 | 1 | 1 | 1 | 1 | 1 | |
| RJ-45 | 2( RJ45 IN*1, RJ45 OUT*1 ) 1000M | 2( RJ45 IN*1, RJ45 OUT*1 ) 1000M | 2( RJ45 IN*1, RJ45 OUT*1 ) 1000M | 2( RJ45 IN*1, RJ45 OUT*1 ) 1000M | 2( RJ45 IN*1, RJ45 OUT*1 ) 1000M | |
| SPDIF Out (Audio Out) | 1，optical | 1，optical | 1，optical | 1，optical | 1，optical | |
| WIF & Hotspot | WiFi6, Dual band (5G & 2.4G ) | WiFi6, Dual band (5G & 2.4G ) | WiFi6, Dual band (5G & 2.4G ) | WiFi6, Dual band (5G & 2.4G ) | WiFi6, Dual band (5G & 2.4G ) | |
| Bluetooth | 5.4 | 5.4 | 5.4 | 5.4 | 5.4 | |
| Line out | 1 | 1 | 1 | 1 | 1 | |
| MIC in | 1 | 1 | 1 | 1 | 1 | |
| TF card slot(Internal) | 1 | 1 | 1 | 1 | ||
